Konfigurasi OSPF

KONFIGURASI OSPF PADA CISCO PACKET TRACER

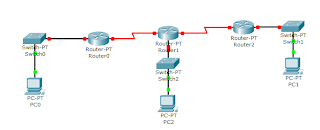

Pertama kita buat dulu sebuah jaringan , seperti gambar dibawah.....

Selanjutnya..
berikan IP Address pada setiap PC..

1. PC 1 dengan nama "PC0"..

2. PC 2 dengan nama "PC 2"..

3. PC 3 dengan nama "PC 3"..

Tahap selanjutnya berikan IP Address pada setiap router . Contoh sebagai berikut :

Pemberian IP Address di Router 1

     --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 172.18.8.1 255.255.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 192.168.8.1 255.255.255.0
Router(config-if)#band 125
Router(config-if)#cl ra 125000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Konfigurasi EIGRP pada Router 1,


Router(config)#router ospf 4
Router(config)#router-id 2.2.2.2
Router(config-router)#net 172.18.8.0 0.0.255.255 area 0
Router(config-router)#net 192.168.8.0 0.0.0.255 area  0
Router(config-router)#log-adjacency
Router(config-router)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#


Pemberian IP Address di Router 2

  --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 172.19.9.1 255.255.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 192.168.8.2 255.255.255.0
Router(config-if)#band 125
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Router(config-if)#exit
Router(config)#int se3/0
Router(config-if)#ip add 18.8.8.1 255.0.0.0
Router(config-if)#band 125
Router(config-if)#cl ra 125000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial3/0, changed state to down
Router(config-if)#exit

Konfigurasi OSPF pada Router 2,


Router(config)#router ospf 4
Router(config-router)#net 172.19.9.1 0.0.255.255 area  0
Router(config-router)#net 192.168.8.0 0.0.0.255 area  0
Router(config-router)#net 18.8.8.0 0.255.255.255 area  1
Router(config-router)#log-adjacency
Router(config-router)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#


Pemberian IP Address di Router 3

     --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!

Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 172.16.10.1 255.255.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 18.8.8.2 255.0.0.0
Router(config-if)#band 125
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit


Konfigurasi OSPF pada Router 3,

Router(config)#router ospf 4
Router(config)#router-id 4.4.4.4
Router(config-router)#net 172.16.10.0 0.0.255.255 area 1
Router(config-router)#net 18.8.8.0 0.255.255.255 area 1
Router(config-router)#log-adjacency
Router(config-router)#end
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#



Setelah dikonfigurasi, coba tes ping antara PC0 , PC1 dan PC2..

Selamat Mencoba...!!!
